1.14inch LCD Display Module IPS Screen, 65K RGB Colors, 240×135 Resolution, Embedded ST7789 Driver, SPI Interface Compatible with Arduino/Raspberry Pi /STM32

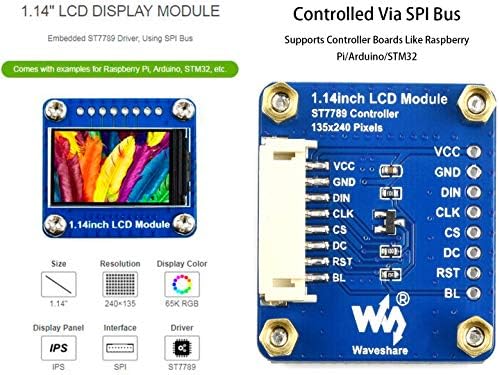

Price: $12.29(as of Apr 03, 2024 07:14:12 UTC – Details) 1.14inch LCD Display Module, IPS Screen, 65K RGB Colors, 240×135 Resolution, SPI Interface,embedded ST7789 driver, using SPI bus Features 240×135 resolution, 65K RGB colors, clear and colorful displaying effect SPI interface, minimizes required IO pins, supports controller boards like Raspberry PiArduinoSTM32 Comes with development resources (examples for Raspberry PiArduinoSTM32) Specifications Operating voltage:3.3V5V Resolution:240 x 135 pixels Communication Interface:4-wire SPI Display size:24.91 x 14.86mm Display Panel:IPS Pixel size:0.1101 x 0.1035mm Driver: ST7789 Dimensions:35.00 x 32.00mm Controlled via SPI Bus: supports controller boards like Raspberry PiArduinoSTM32 VCC:Power (3.3V5V input) GND:Ground DIN:SPI data input CLK: SPI clock input CS:Chip selection, low active DC:DataCommand selection (high for data, low for command) RST:Reset, low active BL LCD Module Package Content 1.14inch LCD Module x1 PH2.0 20cm cable x1 240×135 resolution, IPS Display Panel,65K RGB colors, clear and colorful displaying effectSPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32Operating voltage: 3.3V/5V . Communication Interface : 4-wire SPI.Display size : 24.91 × 14.86mm. Pixel size : 0.1101 × 0.1035mm.Driver : ST7789 . Dimensions : 35.00 × 32.00mm.
